HachimoDock replication kit (ESP32-P4)

Everything for the current ESP32-P4 design of the project: the development board, screen, joystick, switches and speaker, plus the baseboard PCB and case we make.

Main chip: ESP32-P4 (Waveshare board), dual-core RISC-V, up to 400 MHz
Memory: 32 MB flash, 32 MB PSRAM
Screen: 2.8-inch IPS, 480×640, MIPI-DSI
Input: 3 mechanical switches, 1 four-way joystick
Sound: Speaker, 8 Ω 1 W
Power: USB, no battery needed

This is a development-version kit. Appearance, finish and some features are as delivered; burrs, colour differences and similar small flaws are normal. See the User Agreement.

Original author: Copyright © 2026 Yizheng Wang. OSHWHub project page maintained by tudoom.
License: See the upstream page

If you believe something here infringes your rights, email bd@thorb.com and we will reply within 5 working days.

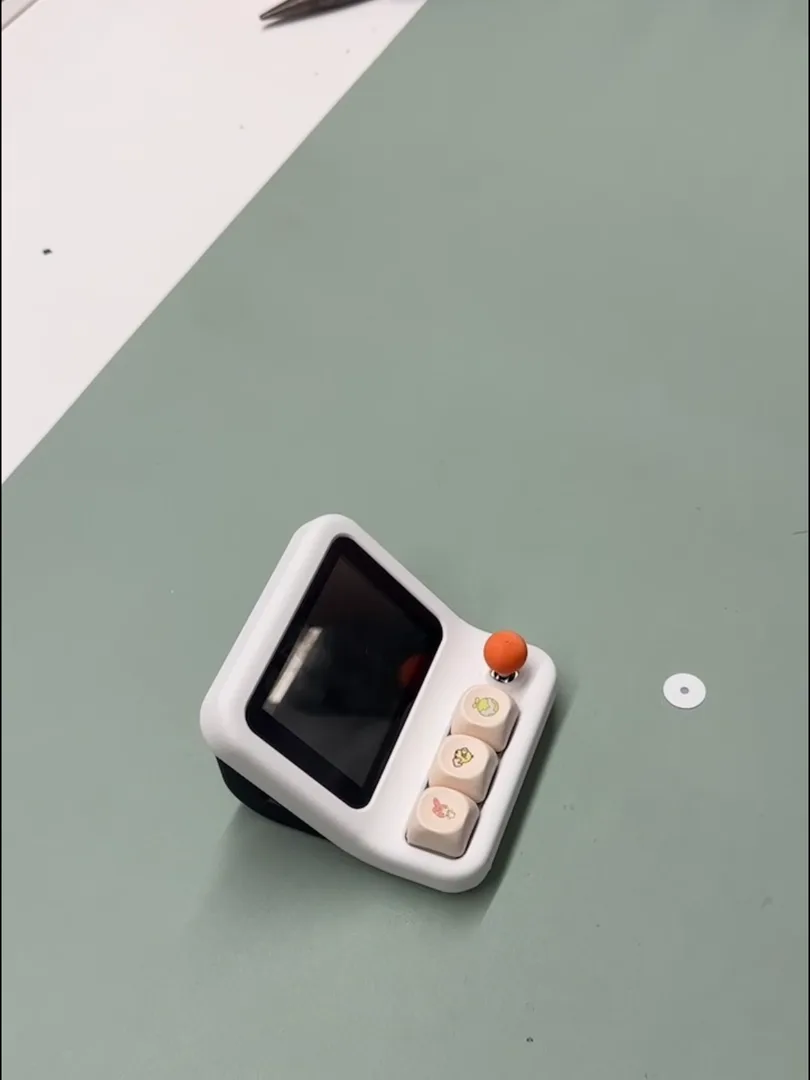

Original project (oshwhub.com)Assembly video: building HachimoDock step by step

Parts

11 itemsComplete sets 0

Set

Missing: 2.8-inch 480×640 IPS MIPI-DSI display (no touch), Joystick potentiometer, 5 kΩ, 14-pin through-hole

Waveshare ESP32-P4-WIFI6-M development board (pre-soldered headers) is low on stock, so you can’t add a complete set

Waveshare ESP32-P4-WIFI6-M development board (pre-soldered headers)

ESP32-P4-WIFI6-M

1 per set

¥79.00$15.80 each

¥79.00$15.80

2.54 mm 1×20-pin single-row female header

2 per set

¥0.22$0.04 each

¥0.44$0.08

2.8-inch 480×640 IPS MIPI-DSI display (no touch)Out of stock

WLK2802MIPI-15P

1 per set

¥69.00$13.80 each

Out of stock

¥0.00$0.00

Joystick potentiometer, 5 kΩ, 14-pin through-holeOut of stock

YA13S-L7.4-B10Ka(60)-0-DL01

1 per set

¥3.52$0.70 each

Out of stock

¥0.00$0.00

OUTEMU Lime V3 PRO switch (or Peach V3), with light-guide pillar

V3 PRO / V3

3 per set

¥1.27$0.25 each

¥3.81$0.75

2011 small-cavity speaker, 8 Ω 1 W, 1.25 mm 2-pin connector

1 per set

¥4.50$0.90 each

¥4.50$0.90

M2.5×6 304 stainless steel Phillips pan-head screw

2 per set

¥0.03$0.01 each

¥0.06$0.02

M2.5×4×3.5 knurled brass heat-set nut

2 per set

¥0.11$0.02 each

¥0.22$0.04

FFC flat flexible cable (development board to display)

1 per set

¥0.64$0.13 each

¥0.64$0.13

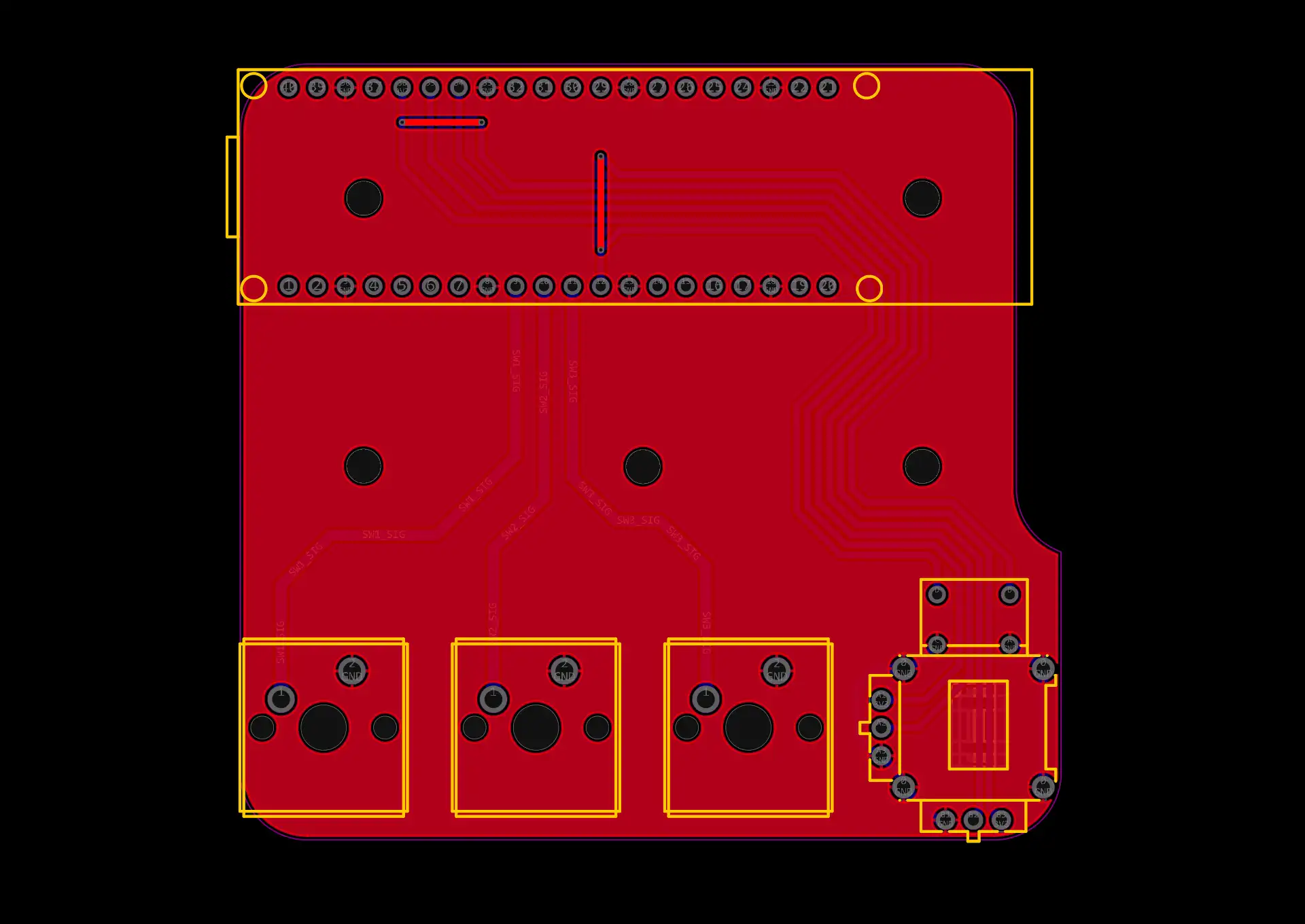

Custom baseboard PCB (fabricated)

1 per set

¥8.60$1.72 each

¥8.60$1.72

Sale price applies to complete sets

Complete case (3D-printed)

1 per set

¥20.00$4.00 each

¥20.00$4.00

Sale price applies to complete sets

Services

Ships by Sun, Nov 1 (estimated)

Board soldering needs a complete set. Missing: 2.8-inch 480×640 IPS MIPI-DSI display (no touch), Joystick potentiometer, 5 kΩ, 14-pin through-hole

Board soldering¥0.00$0.00 ~~¥10.00$2.00~~ / setWe do the soldering on the board for you.

Total¥117.27$23.44

Check out

What to do when it arrives

The development board comes with its headers already soldered. Use the female headers in the kit to join it to the custom baseboard.
The parts on the baseboard need soldering. If you would rather not do it yourself, add the “Board soldering” service and we do it for you.
The case is 3D-printed. It is assembled with screws and heat-set brass nuts.

What the case includes

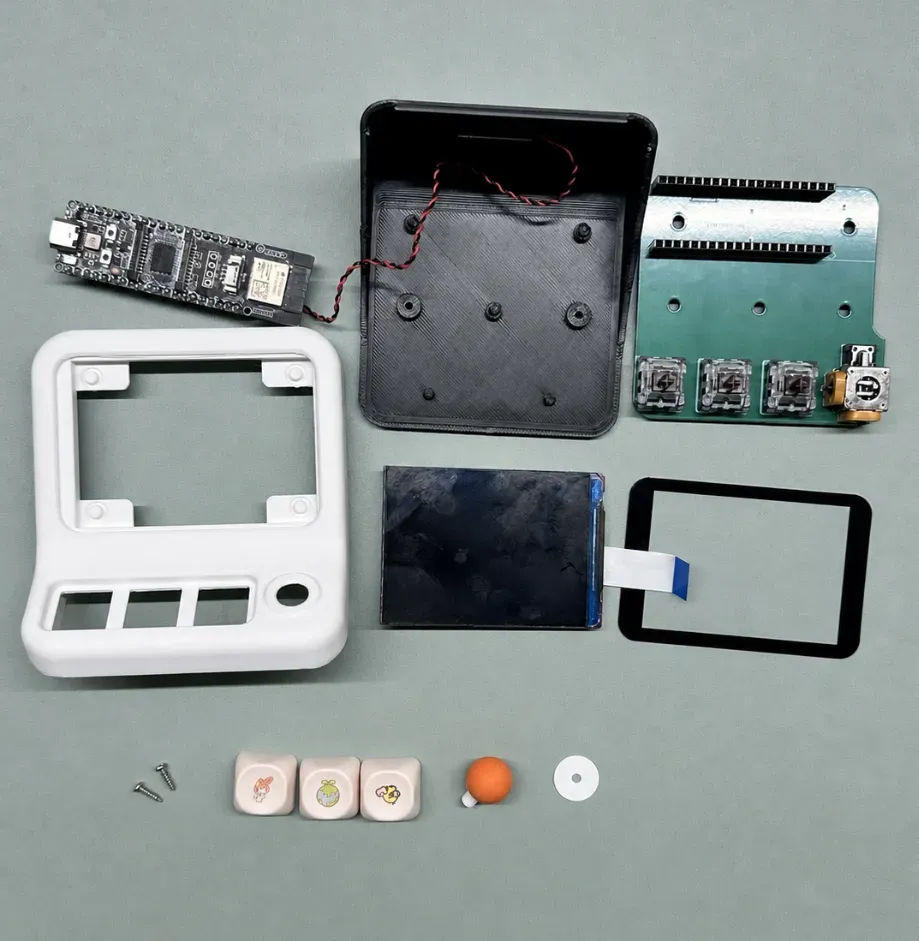

“Complete case (3D-printed)” in the parts list is one full set of printed parts, not listed piece by piece:

Front and rear shells
3 printed keycaps (they fit on the mechanical switches)
1 joystick cap

The screen

The screen in the kit is a 2.8-inch MIPI-DSI module without touch.
